When specifying wall materials for commercial projects, architects and contractors face a critical decision: stick with traditional solid panels or switch to aluminum honeycomb panels. The choice impacts weight, cost, installation speed, and long-term durability. Here’s a data-driven comparison to help you decide.
What is an Aluminum Honeycomb Panel?

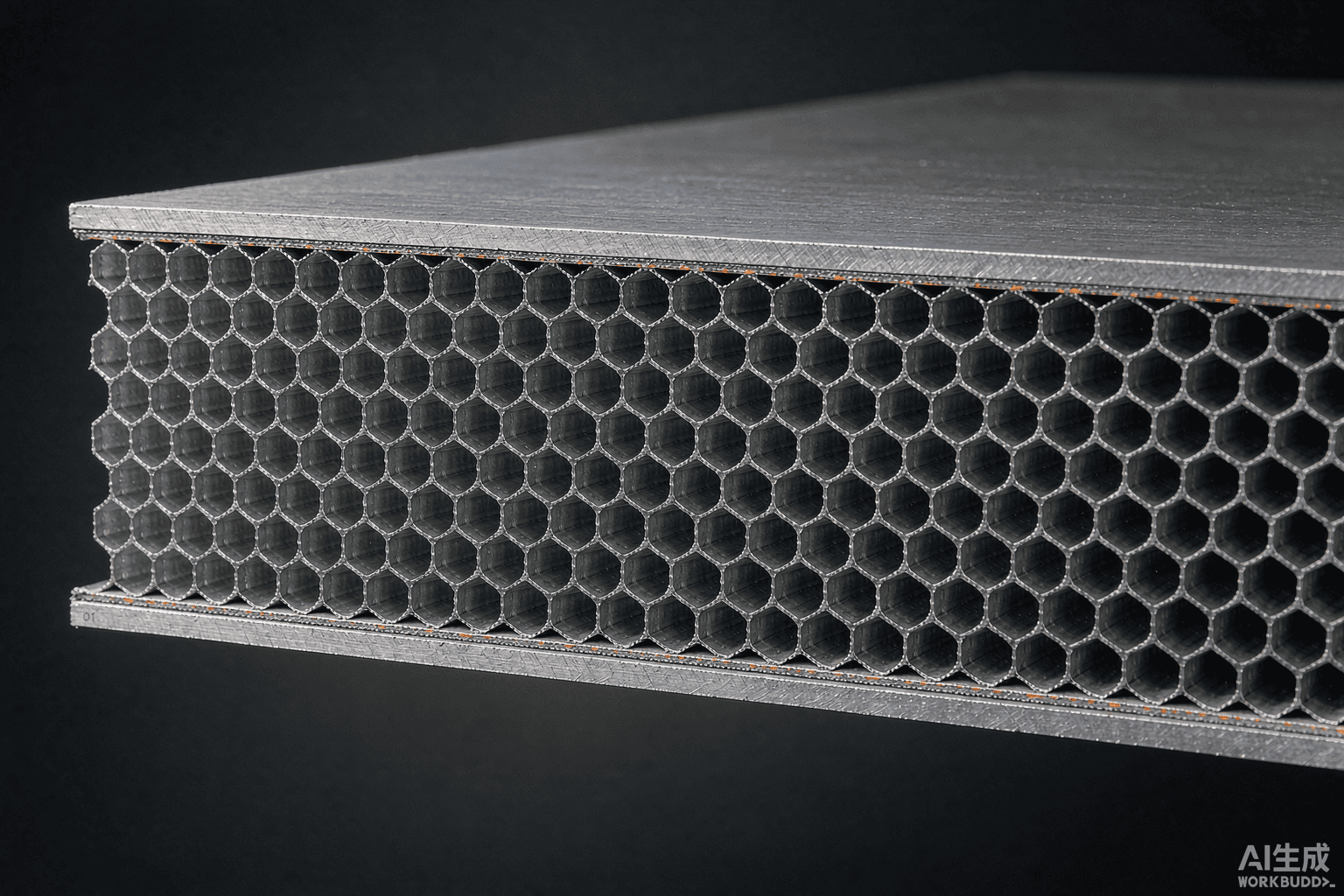

An aluminum honeycomb panel consists of two thin aluminum skins bonded to a hexagonal honeycomb core — the same structural principle used in aerospace engineering. The result: a panel that’s up to 80% lighter than a solid aluminum sheet of the same thickness, yet equally rigid.
Head-to-Head Comparison
| Feature | Aluminum Honeycomb Panel | Traditional Solid Panel (MDF/Plywood/Solid Aluminum) |
|---|---|---|
| Weight | 3-8 kg/m² | 15-40 kg/m² |
| Flatness | Perfectly flat, no warping | Prone to warping with humidity |
| Fire Rating | Class A (non-combustible) | Varies (MDF = Class C) |
| Water Resistance | 100% waterproof | MDF/Plywood absorb moisture |
| Sound Insulation | Good (honeycomb dampens vibration) | Minimal |
| Installation | Lightweight, fast | Heavy, requires more labor |
| Cost per m² | Moderate | Low (MDF) to High (solid aluminum) |
| Lifespan | 20+ years | 5-15 years (depending on material) |
| Customization | Any size, color, finish | Limited by material |
Where Aluminum Honeycomb Excels
1. High-Rise Buildings
Weight matters. Every kilogram saved on wall panels reduces structural load. For a 30-story building, switching to honeycomb panels can save tons of dead load.
2. Cabinetry & Furniture
Honeycomb-core cabinet doors are flat, stable, and moisture-proof — ideal for kitchens, bathrooms, and high-humidity environments.
3. Curtain Walls & Façades
Honeycomb panels maintain perfect flatness on large spans, eliminating the “oil-canning” effect common with thin solid aluminum sheets.
4. Marine & Coastal Applications
100% waterproof and corrosion-resistant when properly coated — suitable for coastal hotels and resorts.
When Traditional Panels Still Make Sense
- Budget-constrained residential projects where weight and fire rating are less critical
- Temporary installations where lifespan isn’t a concern
- Small decorative elements where honeycomb’s structural advantage isn’t needed
The STARLEADER Advantage

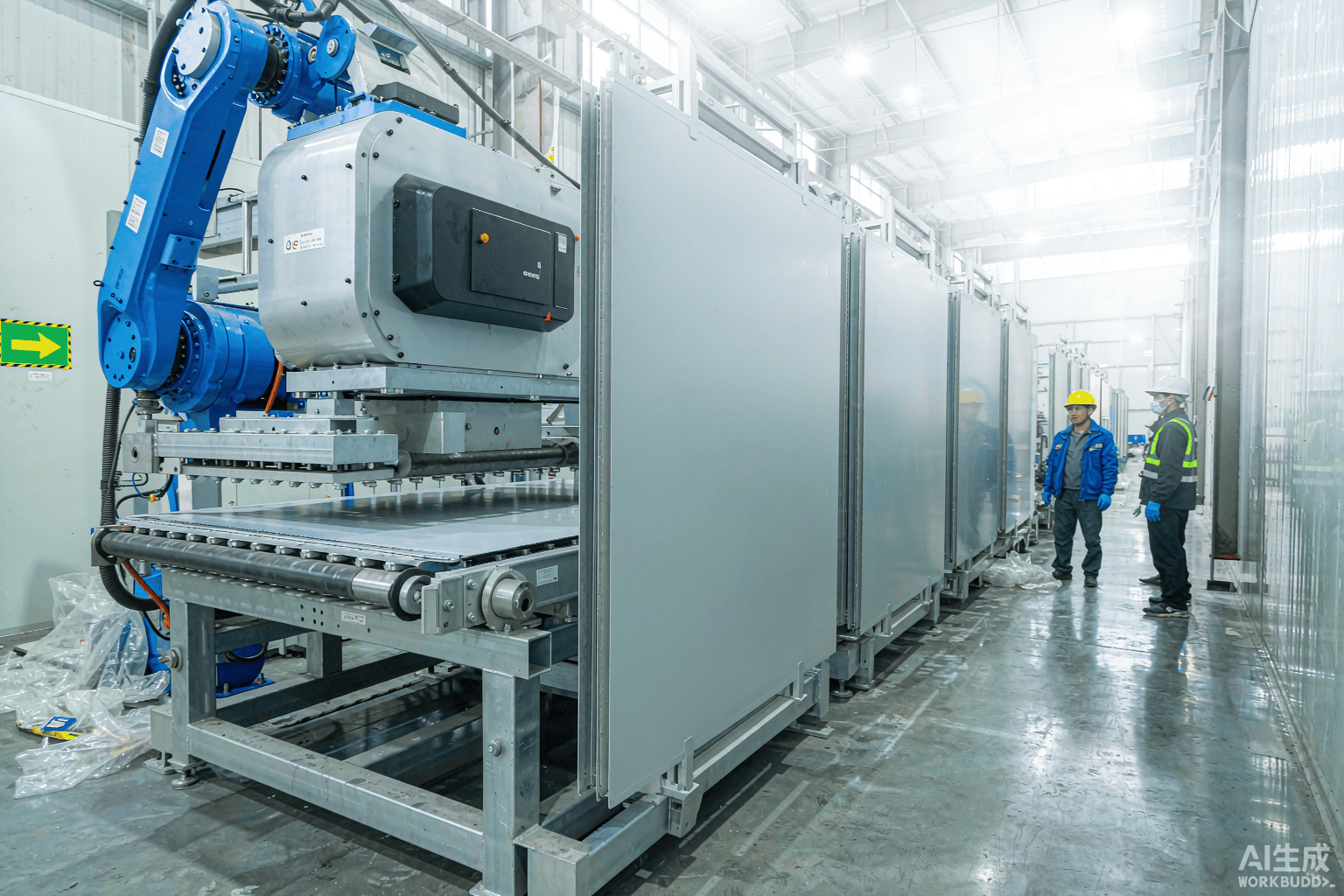

At STARLEADER, we manufacture aluminum honeycomb panels in our own factory with:
- Custom core thicknesses: 10mm to 100mm+

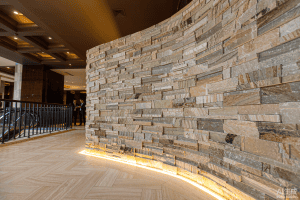

- Skin options: Aluminum, stone veneer, SPC, marble
- Finish options: PVDF, powder coating, wood grain transfer, anodized
- Fire rating: Class A (tested to ASTM E84)
- OEM packaging: Custom branding for wholesale orders
Cost Analysis: A Real Project Example
For a 5,000 m² hotel interior cladding project:
| Traditional Solid Panel | Aluminum Honeycomb Panel | |
|---|---|---|
| Material cost | $12/m² | $18/m² |
| Installation labor (weight factor) | $15/m² | $8/m² |
| Transport (weight factor) | $5/m² | $2/m² |
| Total installed cost | $32/m² | $28/m² |
The lighter weight reduces transport and labor so much that the honeycomb panel actually comes out cheaper overall — even with a higher material price.
Ready to switch? Contact STARLEADER for free samples and project-specific pricing.
